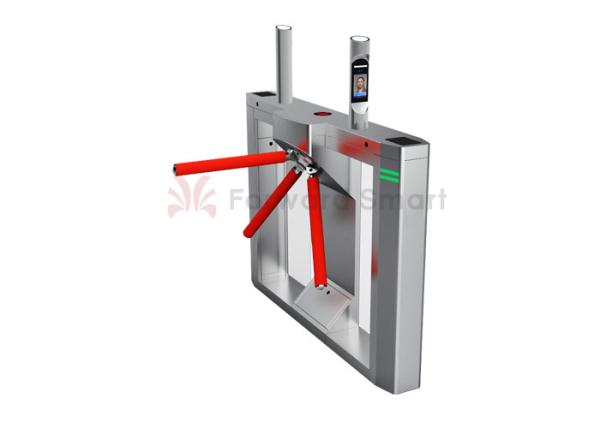

304 stainless steel vertical Security access control , RFID Pedestrian Gate Entry System Tripod Turnstile
Functions & Features
1) 304 Stainless steel housing
2) Bi-directional passing
3) Arms auto drop when power off
4) Arms auto rise up when power on and auto stop on obstacle
5) Traffic light indicator
6) RFID interface
7) SDK available to with other system.
8) RS232 socket, LAN socket
9) If the passenger does not pass in valid time, the passage will be locked up again. The valid passing time can be set up.
10) Passenger counter (optional)
Advantage
Matt finished housing surface, dustproof and rainproof design for outdoor use.
Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
Drop arm when power off, raise arm automatically when power on.
Compatible with other access control system.
Convenient installation and maintenance.
Application
Government
Bank
University, Schools, library
Office building
Gym/Stadium
Factory
Product Application
Swing gate opener, swing gate mechanism, Boom Barrier Swing Turnstile Gate
Full automatic swing turnstile is used for pedestrian management, such as metro/ train/ bus station, airport, office building, school, hospital, government building, tourist site and other places as well.
The main feature of this turnstile is swing arm anti-collision function(encoder technology),you can even kick the swing arm.
| Name | Flap Barrier/Flap Turnstile | Transmission | Sine Linkage |
| Model No. | WQH-TY04 | Frenquency | 50-60Hz |
| Housing Size | 420x330x980mm | Control type | IC/ID/Barcode control accepted |
| Housing Material | 304 grade stainless steel optional | Max Channel Width | 600mm |
| Passing speed | 30 person/min | Logic voltage | 24v |
| Working voltage | AC220V±10V, 50HZ | Direction | Single or Bi-directional |
| Motor voltage | 220V | Operating humidity | ≤90% non-condensing |
| Rated Power | 80w | Operation life | ≥5 million times |
| Working temperature | -45°C--+80°C | Net Weight | 60kg |
| Communication Interface | RS485/RS232 | Gross Weight | 65kg |
