Access Control Extra Wide Lane IP54 Swing Turnstile Gate

Product Categories
Shenzhen Forward Smart System Co,.Ltd
Contact Now

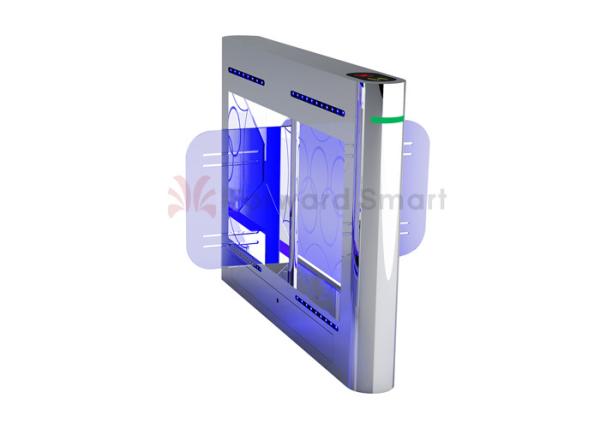

Access Control Extra Wide Lane IP54 Swing Turnstile Gate

Place of Origin : Guangdong, China

Brand Name : FORWARD SMART

Model Number : TB31

Supply Ability : 1000pieces per month

Packaging Details : carton box/wooden box for turnstile with single pole

MOQ : 1 pieces

Price : USD500-800pieces

Certification : ISO9001:2015

Payment Terms : T/T

Delivery Time : 5-8 working days

Material : 304 Grade stainless steel

Product size : L1200*W200*H980mm

Operation mode : card swipping, barcode ticket, fingerprint

Arm Length : 300-500mm

Working mod : Single or bi-direction(optional)

Waterproof grade : IP54

Power supply : AC220/50Hz(optional)

Working environment : indoor/outdoor

Communication interface : TCP/IP

Net weight : 60Kg/unit

Contact Now

High Cost-Effect Automatic Access Control Turnstile with Extra Wide Lane
Product Description

Main Features:

●Self checking and Alarm Function. Easy for client's maintenace.

●When power on, arm up automatically. when powe off, arm down automatically.

●Single or Bi- directional Passing is available.

●Remote control from PC Terminal.

●Self resetting : when the turnstile arm down, the user doesn't pass in certain time , it would not allow the user pass.

●Anti clamping and aModel Numbernti trailing .

Model No.
WQ-S1/401(Single pole turnstile/arm drop turnstile)
Dimension
L1200×W200×H980mm
Housing Material
304# Stainless Steel
Arm Length
≤600 mm
Passing Speed
30-40 persons/min(RFIDCard)
Direction
Single way or double way
Operating temperature
minus 40°C---60°C
Relative Humidity
≤95%, No Condensation
Power
AC220C±10V,50HZ
Motor
30W/24V
Working power
DC24V 12AH
Communication Connection
TCP/IP
Running Life
5--8 Million
Opening/Closing time
1 second
Self checking time
3s
Certificates
CE and ISO9001
Protection level
IP54
Company Profile
Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system and some traffic accessories.

Most of products from WQH has acquired CE certificate. and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Euorpe, Africa, South America.

In order to provide our customer better service, we have established agent sites in Sri Lanka and Thailand.More distributors are need to expand our marketing share and gain win-win outcome.

Welcome to join our distribution network and become our agents in your local
